Niditrice NLA/SF1000/I
logo Zamboni

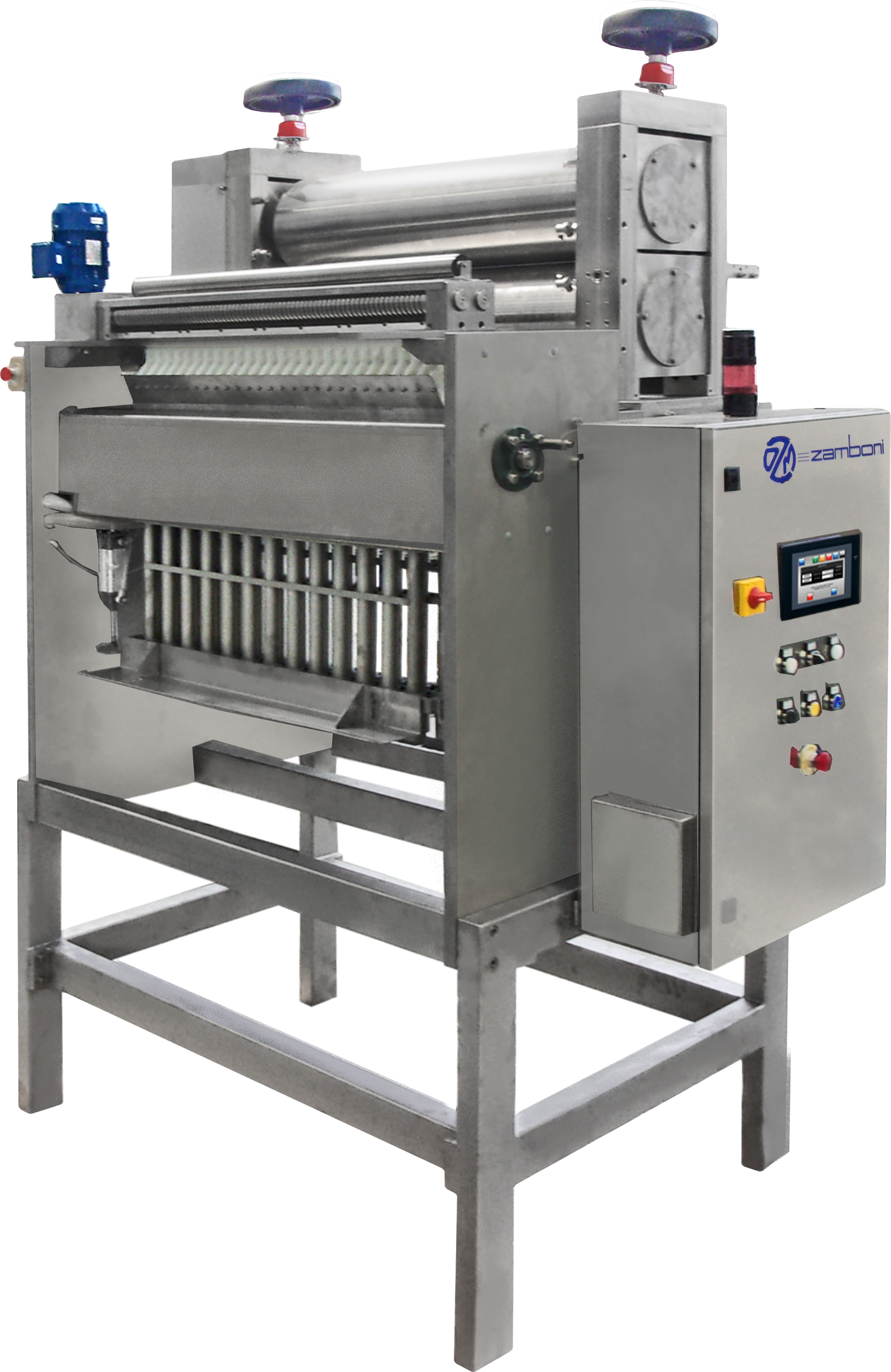

NLA/SF1000/I NESTING MACHINE
spazio
spazio

Nesting machine for the production of frozen nest and characterized by:

  • Stainless steel construction.

  • Use of 1000mm wide dough-sheet

  • Calibrating unit consisting of one couples of rollers.

  • Deposit on belt for the load to the cooker and to the frozen next phase.

  • Cutting Rollers Unit to effect, in synchronization with the calibration, the longitudinal cuts of the dough-sheets, cuts of the type:

    • Parallel, according to any required width.

    • Undulate, to simulate the manual cut.

    • Differentiate, suitable to get different widths of noodles inside the same nest, thus maintaining the same final weight of the various nests.

    • Spur cut popup, to make an indentation of the external profile.

    • Troccolo Pugliese popup.

  • Unit with Rotating Knives to effect the cut to length. A special installed motorization allows to get the passage of noodles at stopped and vertical knife, and their cut through fast rotation of the knives.

  • Set of cups of different dimensions both round and oval, where the formation of the nest happens inside wrapping pipes by means of a blow of compressed air actuated by an electro-valve-system under control of the phase shaft of the Nesting machine.

  • The deposit on the belt is effected through a Mobile Telescope Unit that allows to touch lightly the belt during the shaping of nest and then, when lifting, the advancement of the belt.

  • All phases of work are controlled by the PLC of the machine and the operator has the possibility of loading different product recipes through a display touch screen.

Models available:

spazio

Ours nests:
